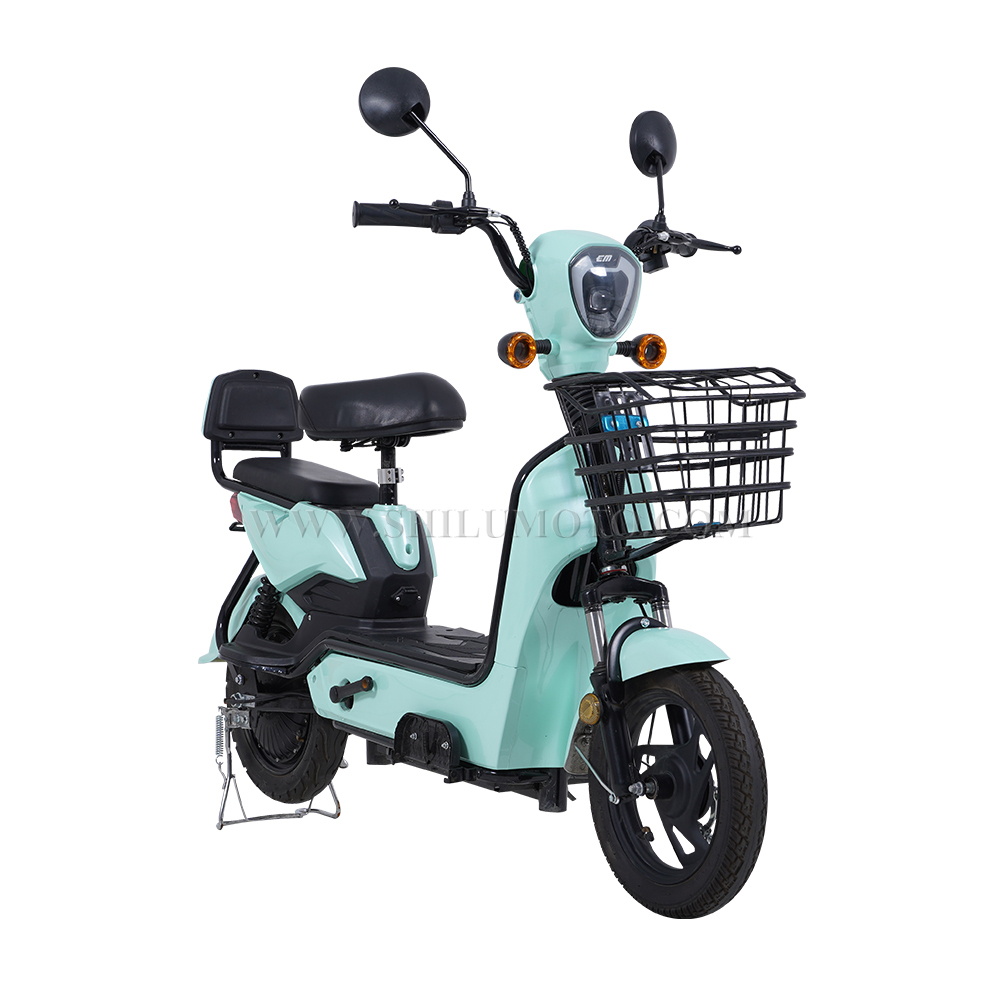

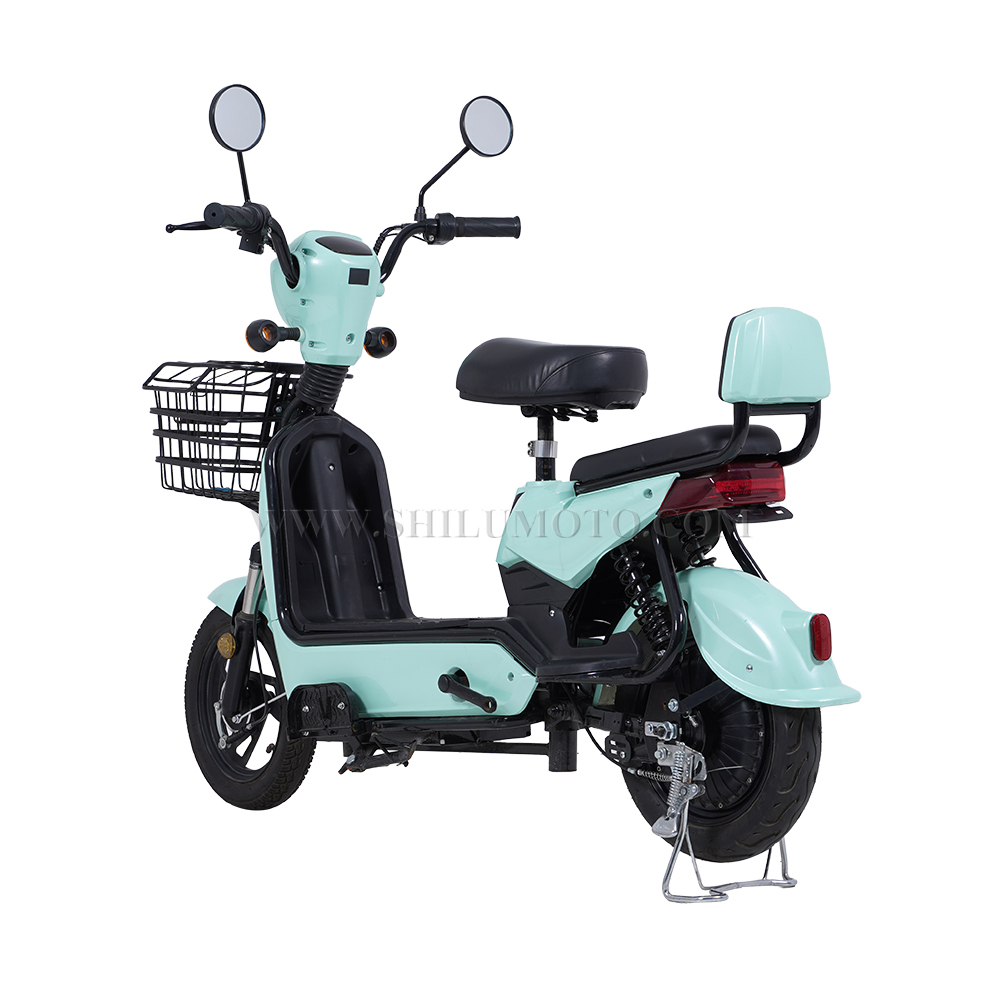

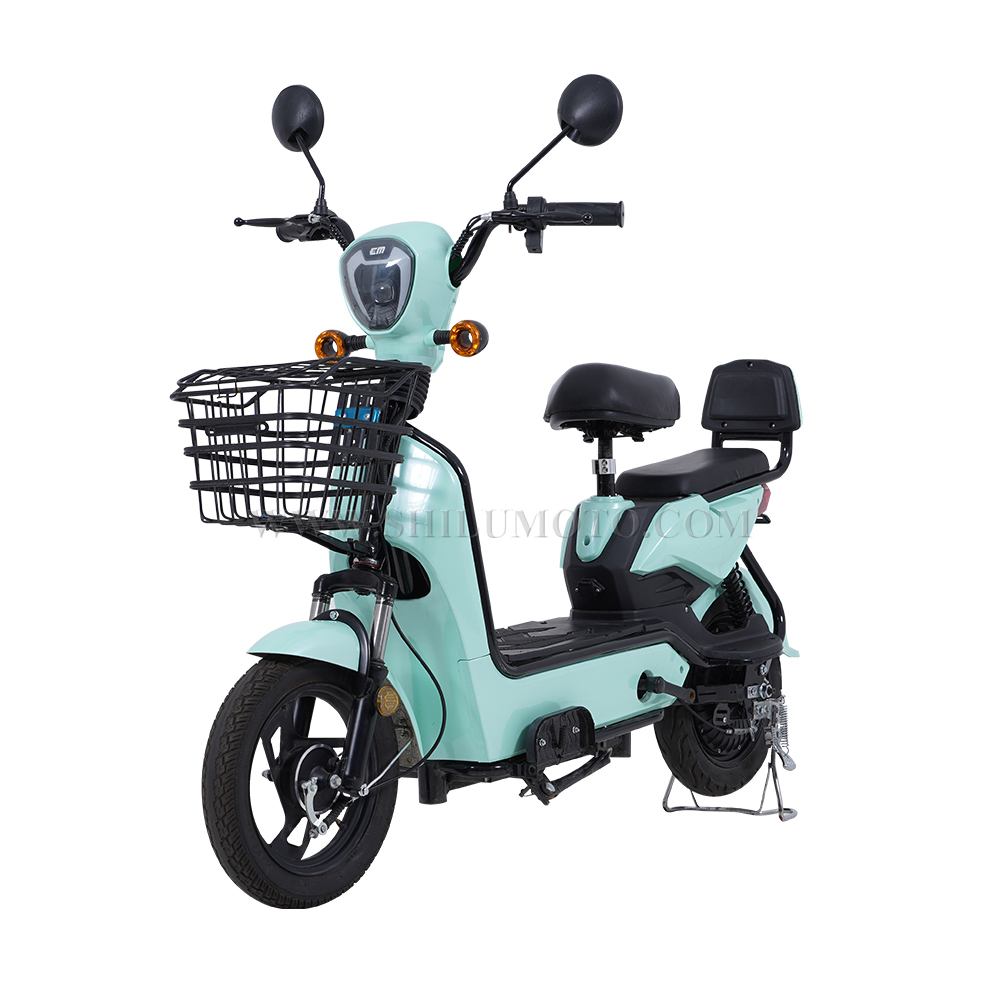

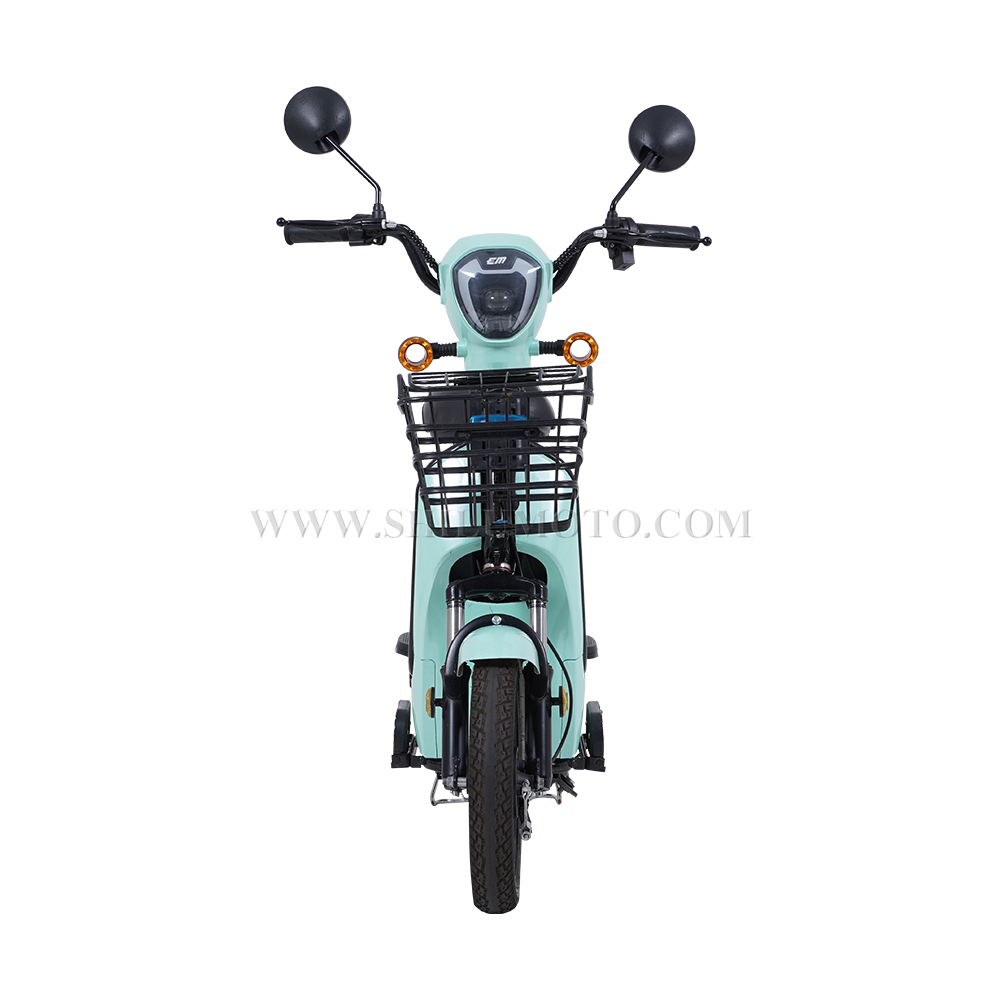

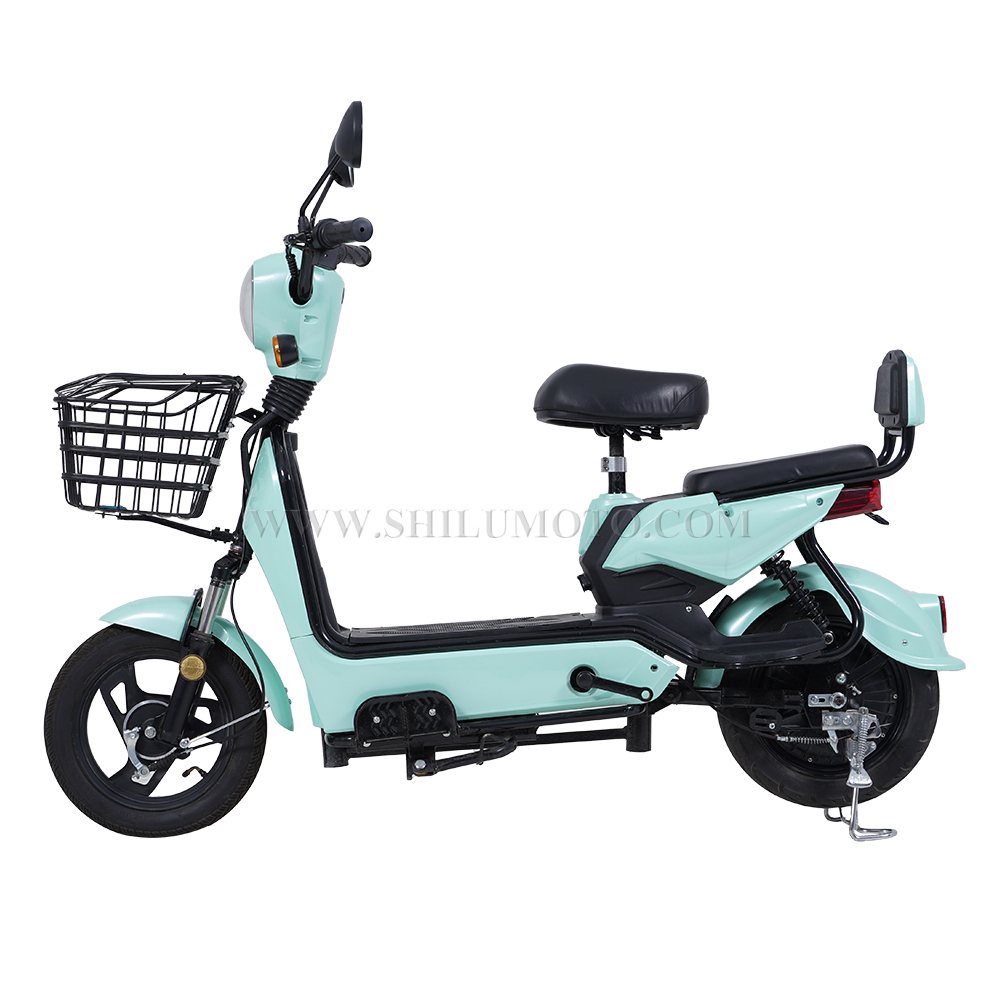

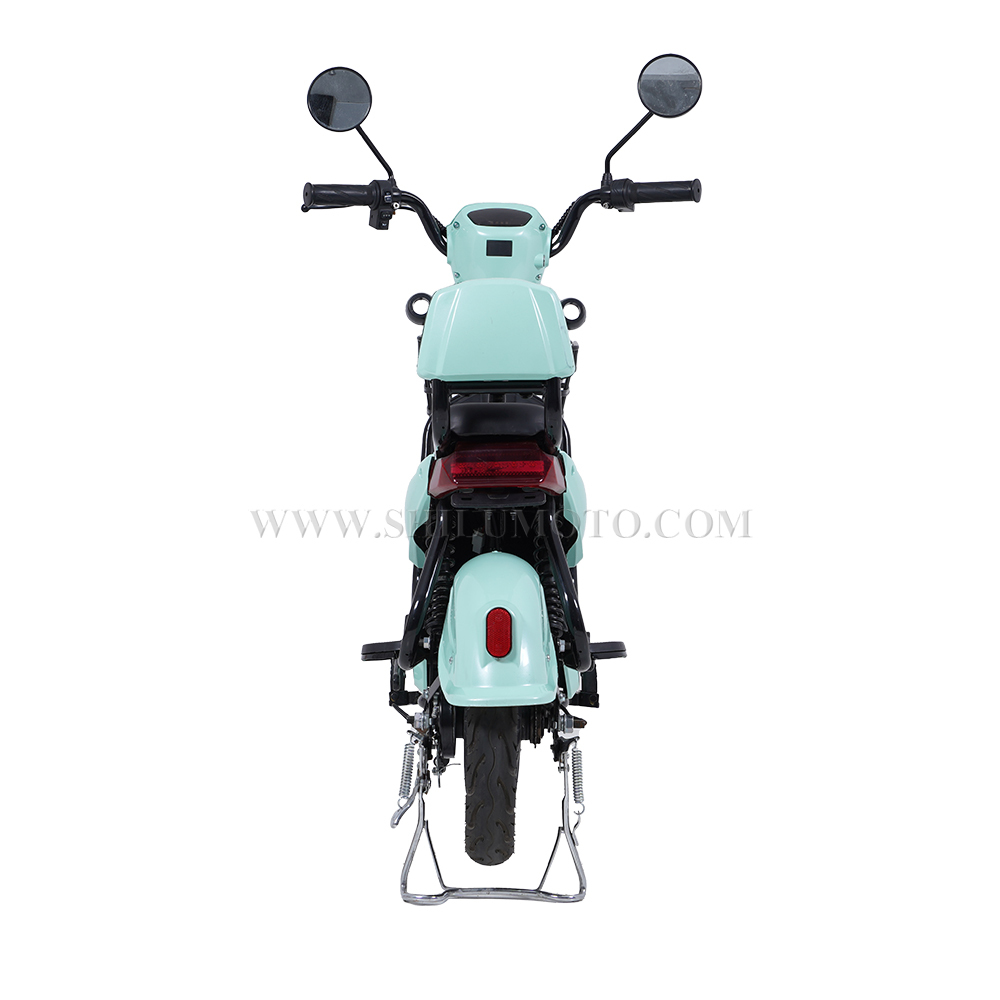

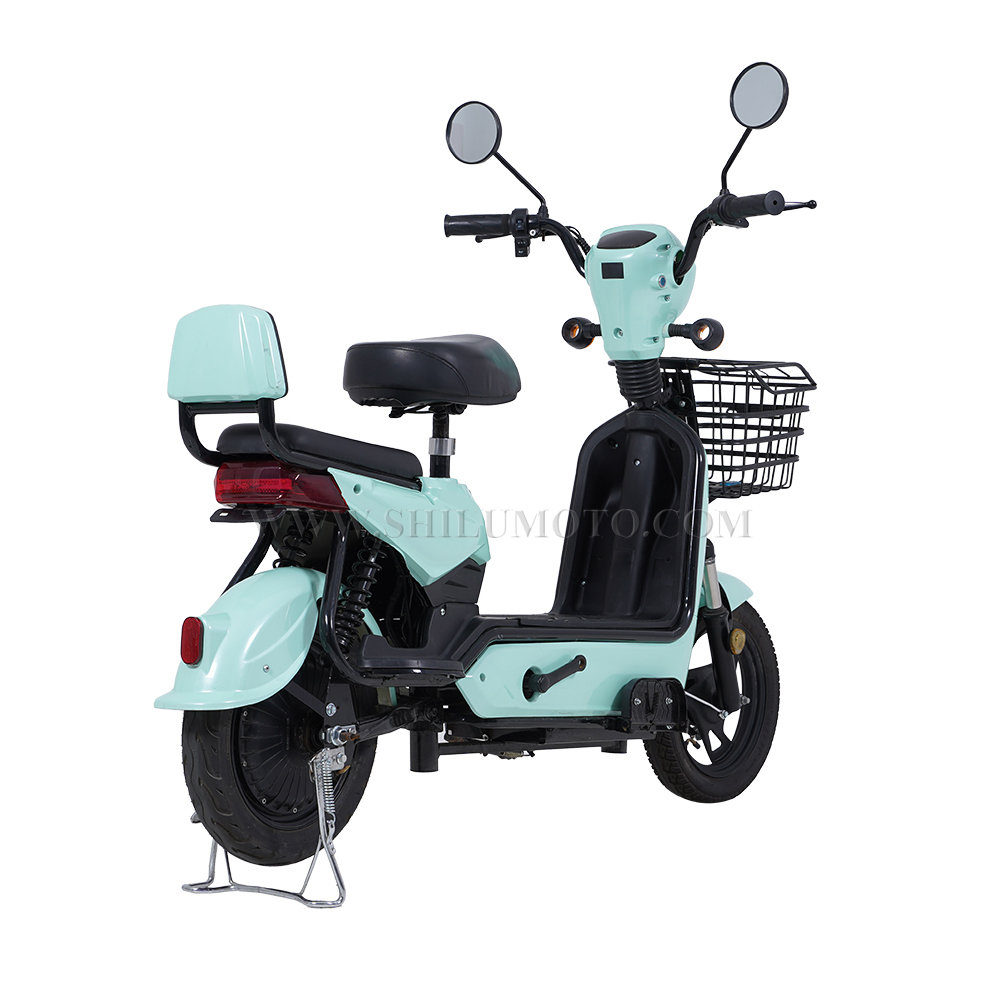

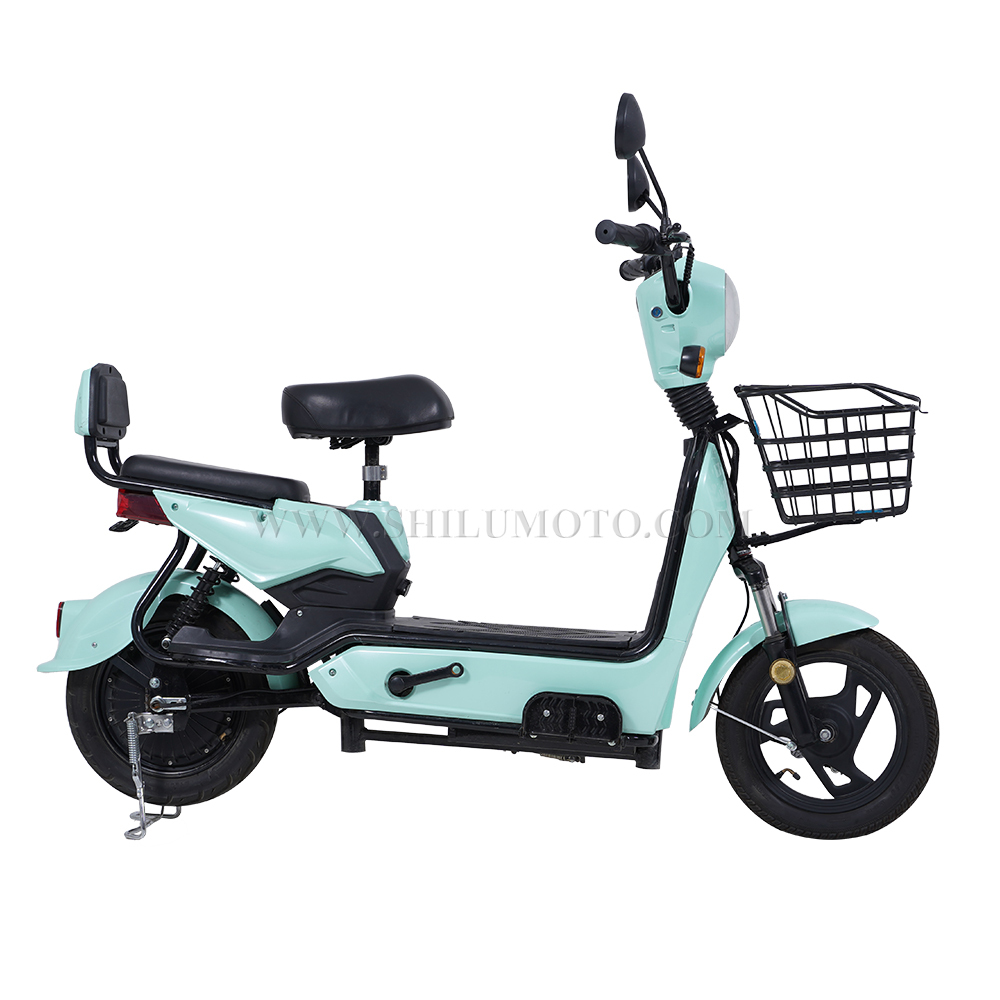

JY02 Electric bike China factory
Our factory offer you high quality electric bike,electric scooter and e moped and make sure they meet your OEM demand.
1/1
| Motor power | 450W |
| Controller | 9 tubes |
| Speed | 35km/h |
| Three mode speeds | Low speed (climbing)/Medium speed (city)/High speed (speed)/Reverse |
| Range | 45km-80km/Charge |
| Angle of climb | 15 ° |
| Brake system | Front disc brake and rear drum brake |
| Seat height | 730mm |
| Vehicle size | 1600*40*940mm |
| Front and rear wheelbases | 1130mm |
| Vehicle Weight(Without battery) | 45kg |
| Load limiting | 150kg |
| Tyre | 250-10 vacuum tire |
| Light | LED |
| Voltage | 48/60volts |
| Battery | Lead acid battery or Lithium battery |
| Alarm function | Central lock with burglar alarm, keyless start, find my electric car feature |
| Charger specification | 48V or 60V/3A automatic power off(OEM) |
| Charging time | 3 to 5 hours /6 to 8 hours |
| Front and rear shock absorption | Front - True hydraulic telescopic,Rear - True hydraulic dual shock absorbers and dual tube technology |
| Minimum ground clearance | 90mm |
| Baking paint | PU painting |
| Brake handle | Aluminium alloy |
| Peculiarity | USB charging, one click rescue button, reverse gear |
| 40HQ（CKD） | 200pcs |
| 40HQ（SKD） | 240pcs |
